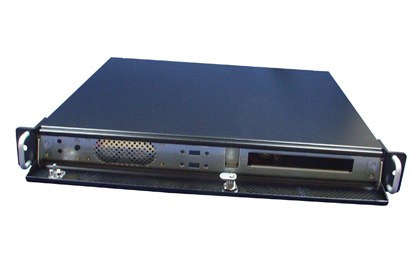

| 1U Server |

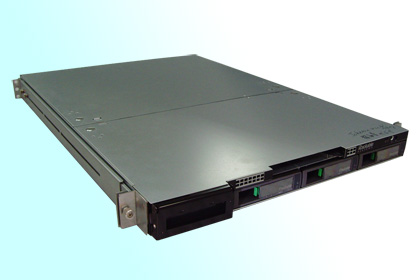

1U Server & Storage |

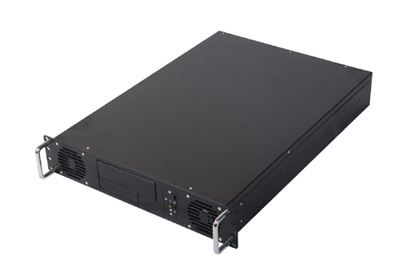

2U Server |
 |
 |
 |
Chassis & Brackets
- A5052 per Laser Blanking
- Breaking & Forming
- Black Painting
- Reviting & Spot Welding
- Gaskets & Screws Assembly
Power Supply * 1
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Reviting & Spot Welding
- Logo Labeling
- Indicated PCB & Screws Assembly
LCD Frame
Slide Tray * 2
3.5" HDD Tray * 4
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Black Painting
- Reviting & Screws Assembly
80 Sq. Fan * 2
Power Supply * 1
* PE Bag & Bulk-Packing |

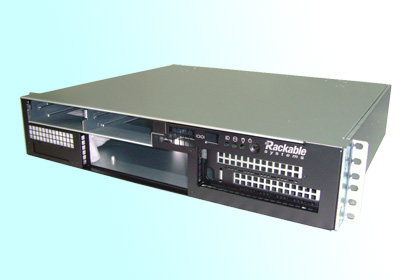

| 2U Server & Storage |

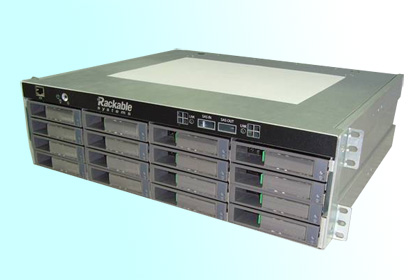

3U Storage |

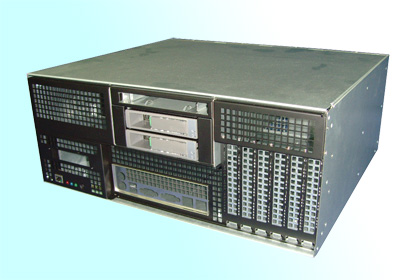

4U Server & Storage |
 |
 |
 |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Black Painting & White Silkscreen
- Reviting & Spot Welding
- Indicated PCB & Screws Assembly
PCI Slot * 2
3.5" HDD Tray * 2
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Reviting & Spot Welding
- Logo Labeling
- Indicated PCB & Screws Assembly
3.5" HDD Tray * 16
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Black Painting & White Silkscreen
- Reviting & Spot Welding
- Indicated PCB & Screws Assembly
PCI Slot * 6
3.5" HDD Tray * 2
* PE Bag & Bulk-Packing |

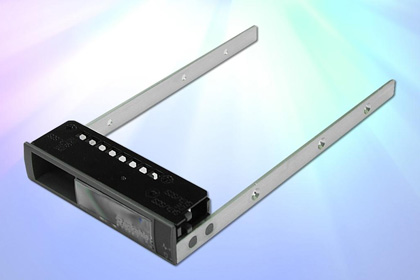

| 3.5" HDD Tray |

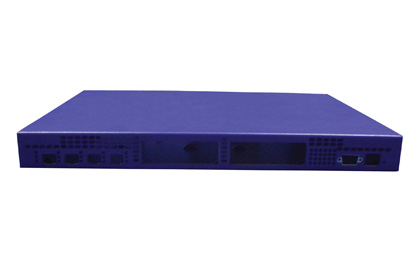

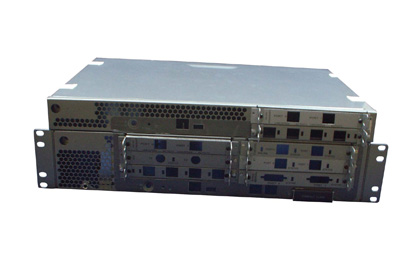

1U Telecom |

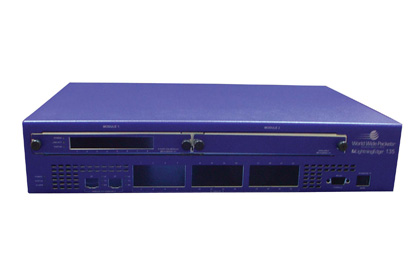

2U Telecom |
 |
 |
 |
Front Panel
- PC & ABS per Injection
Front Frame
- SGCC per Stamping
- Black eCoating
Slide * 2
- A6063 per Extruded
- 2nd Operating per Machining
- Light Pipe * 2
- Riveting Assembly
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Seal Welding Corners
- Blue Painting & White Silkscreen
- Gaskets & Screws Assembly
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Seal Welding Corners
- Blue Painting & White Silkscreen
- Gaskets & Screws Assembly
I/O Faceplate * 2
* PE Bag & Bulk-Packing |

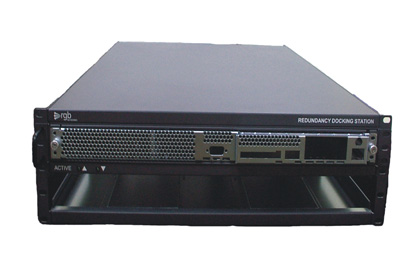

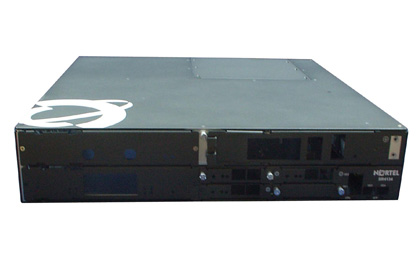

| 2U Telecom |
3U Telecom |
3U Telecom |
 |
 |
 |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Reviting & Spot Welding
- Black Painting & White Silkscreen
- Gaskets & Screws Assembly
I/O Faceplate * 7
Power Cover * 1
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Reviting & Spot Welding
- Silver Painting & Black Silkscreen
- Gaskets & Screws Assembly
I/O Faceplate * 8
Banana Jack * 1
* PE Bag & Bulk-Packing |
Chassis & Brackets
- SGCC per NCT Blanking
- Breaking & Forming
- Reviting & Spot Welding
- Black Painting & White Silkscreen
- Indicated PCB Assembly
- Gaskets & Screws Assembly
1U Docking Sys. * 1
* PE Bag & Bulk-Packing |

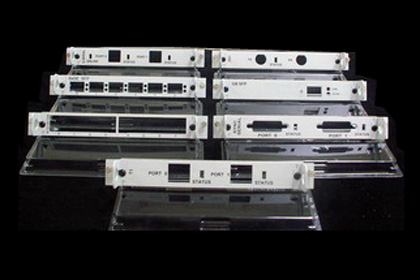

| I/O Faceplate |
|
|
 |
|
|
Faceplate
- A6063 per Extruded
- 2nd Operating per Stamping & Machining
- Silver or White Painting
- Black Silkscreen
Mounting Brkt. * 2
- SGCC per Stamping
- Silver or White Painting
EMI Gasket * 2
* PE Tray & Carton Packing |
|
|
